Asymptotic CI Validation: Simulation Results

Overview

This article presents simulation-based validation of the asymptotic confidence interval (CI) methods available in the RESI package via resi_pe_asymptotic() and resi().

All asymptotic methods share the same $\hat\Sigma_R$ estimator — the extended influence-function approach that treats the sandwich bread $\hat\Sigma_{XA}$ and meat $\hat\Sigma_{XB}$ as independent estimators (argument deriv_method = "extended" internally) — and differ only in how they invert the asymptotic distribution of the Wald statistic $T^2 = n\tilde{S}^2$.

ci.method	Description
"qf" (default)	Quadratic-form CI: inverts the exact weighted chi-square distribution via the Imhof/Davies algorithm
"normal"	Truncated-normal CI using a bias-corrected normal approximation
"cf"	Cornish-Fisher CI: inverts a Cornish-Fisher expansion of the weighted chi-square

Results are shown for four estimation settings:

Setting	Model	Variance estimator
lm parametric	lm()	stats::vcov
lm robust	lm()	sandwich::vcovHC (HC3)
glm parametric	glm(..., family=binomial)	stats::vcov
glm robust	glm(..., family=binomial)	sandwich::vcovHC (HC3)

For background on the RESI, see the RESI package website and Jones et al. (2025).

---

Simulation design

Plasmode simulation

All evaluations use a plasmode simulation design (Gadbury et al. 2008) built around the insurance dataset ($N = 1338$) shipped with the package. Bootstrap resampling (with replacement) from the full dataset gives the empirical sampling distribution. RESI values estimated on the full dataset via resi_pe() serve as the population targets.

Two models are evaluated:

• Linear model (lm): log10(charges) ~ ns(age, df=3) * sex + bmi + smoker + region
• Logistic model (glm, binomial): I(charges > 15000) ~ ns(age, df=3) * sex + bmi + smoker + region

Each simulation cell (model × variance estimator × sample size) uses 1 000 replicates. Results are shown for sample sizes $n \in \{50, 100, 200, 500, 1000, 2000, 5000\}$.

Metrics

For each model coefficient and ANOVA term the following quantities are reported:

• Coverage: proportion of replicates in which the 95% CI contains the population RESI value.
• Width: median CI width.
• Bias and MSE: mean signed and mean squared deviation of $\hat{S}$ from the population value.

Bootstrap CIs (1 000 replicates, non-parametric) provide the reference standard.

Variance calibration

The calibration study examines whether the analytic $\hat\sigma^2_R$ (the CI width estimator) is consistent for the true Monte Carlo variance of $\hat{R}$ across replications. Each calibration figure has four panels:

1. Bias of $\hat\theta$: signed deviation of the parameter estimates (model coefficients and, for lm, $\hat\phi = \hat\sigma^2$) from their full-data targets.
2. Sandwich covariance normalized bias: $(n\,\widehat{\mathrm{Var}}(\hat\beta_k) - n\,\mathrm{Var}_{\mathrm{MC}}(\hat\beta_k)) / n\,\mathrm{Var}_{\mathrm{MC}}(\hat\beta_k)$.
3. Bias of $\hat{R}$ (RESI point estimate).
4. $\sigma^2_R$ ratios: solid line = $\sigma^2_{R,\text{MC}} / \sigma^2_{R,\text{extended}}$ (Monte Carlo variance over extended estimator); dashed = ratio against the initial delta-method derivation. A ratio of 1 (dashed reference line) indicates perfect calibration.

---

How to reproduce these figures

The chunks below are not evaluated when the article is rendered. Run them from a working directory of your choice; then copy the resulting PDFs into vignettes/articles/figures/ inside the package source tree.

Step 1 — run plasmode simulations

library(RESI)

# Bootstrap reference  (~hours; adjust mc.cores to your hardware)
insurancePlasmodeSim(nsim = 1000, ci.method = "boot",
                     output.dir = "resiBootSim",
                     mc.cores.settings = 4)

# Normal approximation
insurancePlasmodeSim(nsim = 1000, ci.method = "normal",
                     output.dir = "resiAsympNormalSim",
                     mc.cores.settings = 4)

# Quadratic-form (default)
insurancePlasmodeSim(nsim = 1000, ci.method = "qf",
                     output.dir = "resiAsympQFSim",
                     mc.cores.settings = 4)

# Cornish-Fisher
insurancePlasmodeSim(nsim = 1000, ci.method = "cf",
                     output.dir = "resiAsympCFSim",
                     mc.cores.settings = 4)

Step 2 — run variance calibration simulation

# 500 replicates per (model × vcov × n) cell; extended estimator
simCalibrationSim(nsim = 500,
                  output.dir   = "resiCalibrationSim",
                  deriv_method = "extended",
                  mc.cores.reps = 4)

Step 3 — generate figures

# QF detail figures (one PDF per model/vcov setting)
simFigures(output.dir = "resiAsympQFSim")

# Variance calibration figures
simCalibrationFigures(output.dir  = "resiCalibrationSim",
                      deriv_method = "extended")

# CI method comparison, coverage quantile, and estimator bias/MSE figures
simCompareMethodsFigures(
  output.dirs = c(Bootstrap = "resiBootSim",
                  Normal    = "resiAsympNormalSim",
                  QF        = "resiAsympQFSim",
                  CF        = "resiAsympCFSim"),
  figures.dir = "method_comparison"
)

# t2S/f2S vs z2S/chisq2S estimator comparison (lm only)
simEstimatorFigures(sim.dir     = "resiBootSim",
                    figures.dir = "method_comparison")

Step 4 — copy and rasterize figures for the website

# Adjust pkg_dir to the root of your RESI package source tree
pkg_dir  <- "/path/to/RESI"
figs_dir <- file.path(pkg_dir, "vignettes", "articles", "figures")
dir.create(figs_dir, recursive = TRUE, showWarnings = FALSE)

file.copy(list.files("resiCalibrationSim/figures/extended",
                     pattern = "\\.pdf$", full.names = TRUE), figs_dir)
file.copy(list.files("resiAsympQFSim/figures",
                     pattern = "\\.pdf$", full.names = TRUE), figs_dir)
file.copy(list.files("method_comparison",
                     pattern = "\\.pdf$", full.names = TRUE), figs_dir)

# Browsers do not reliably render PDF files in HTML <img> elements. Create a
# PNG companion for every source PDF; pkgdown displays these PNG files below.
# install.packages(c("magick", "pdftools")) # needed once for regeneration
pdf_files <- list.files(figs_dir, pattern = "\\.pdf$", full.names = TRUE)
for (pdf_file in pdf_files) {
  cat(pdf_file)
  pages <- magick::image_read_pdf(pdf_file, density = 700)
  stopifnot(length(pages) == 1L)
  pages <- magick::image_resize(pages, "3400x")
  magick::image_write(
    pages,
    path = sub("\\.pdf$", ".png", pdf_file),
    format = "png"
  )
}

---

Variance estimator calibration

These figures show whether $\hat\sigma^2_R$ — the width estimator shared by all three asymptotic CIs — is well-calibrated as a function of sample size.

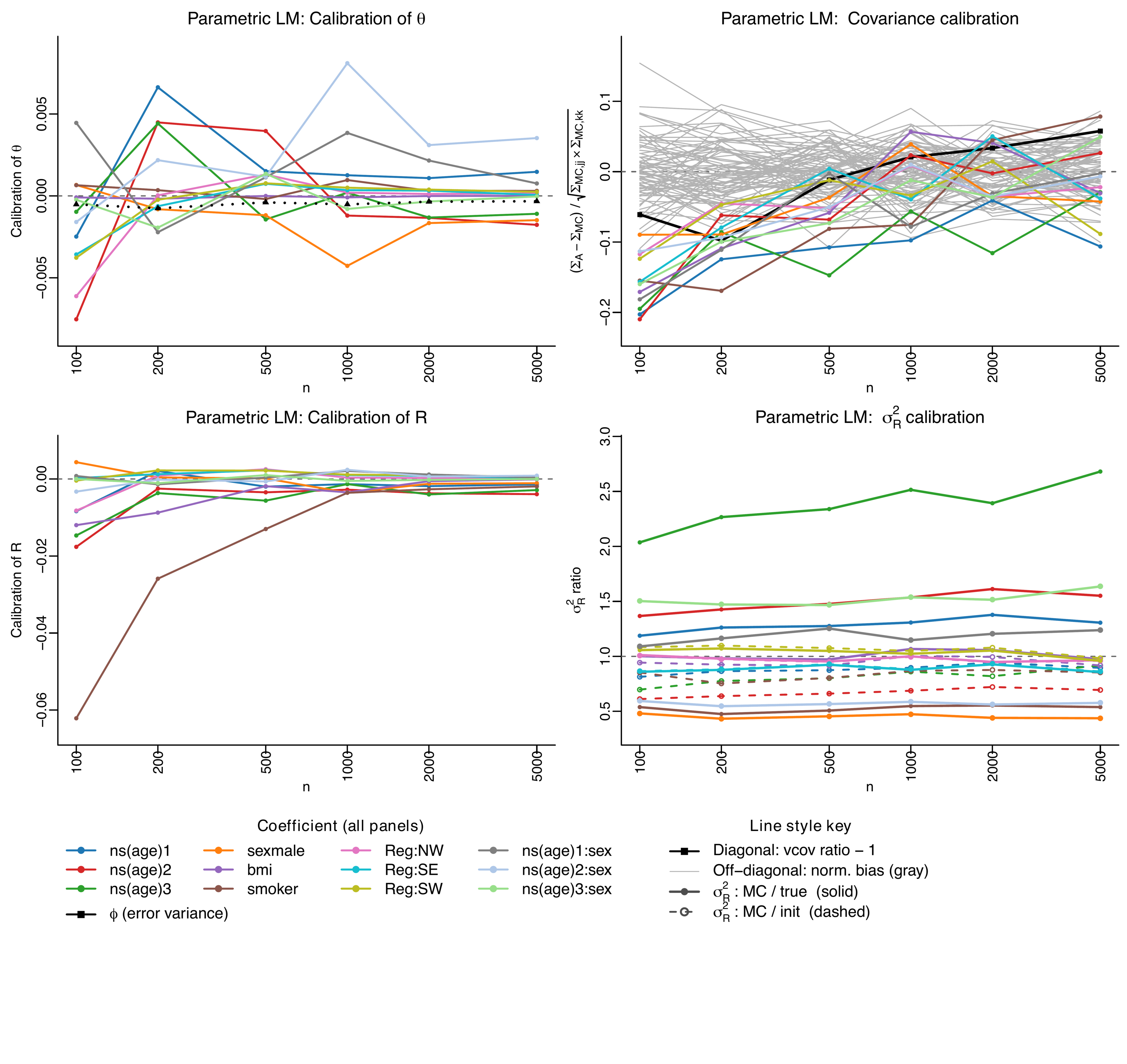

LM parametric

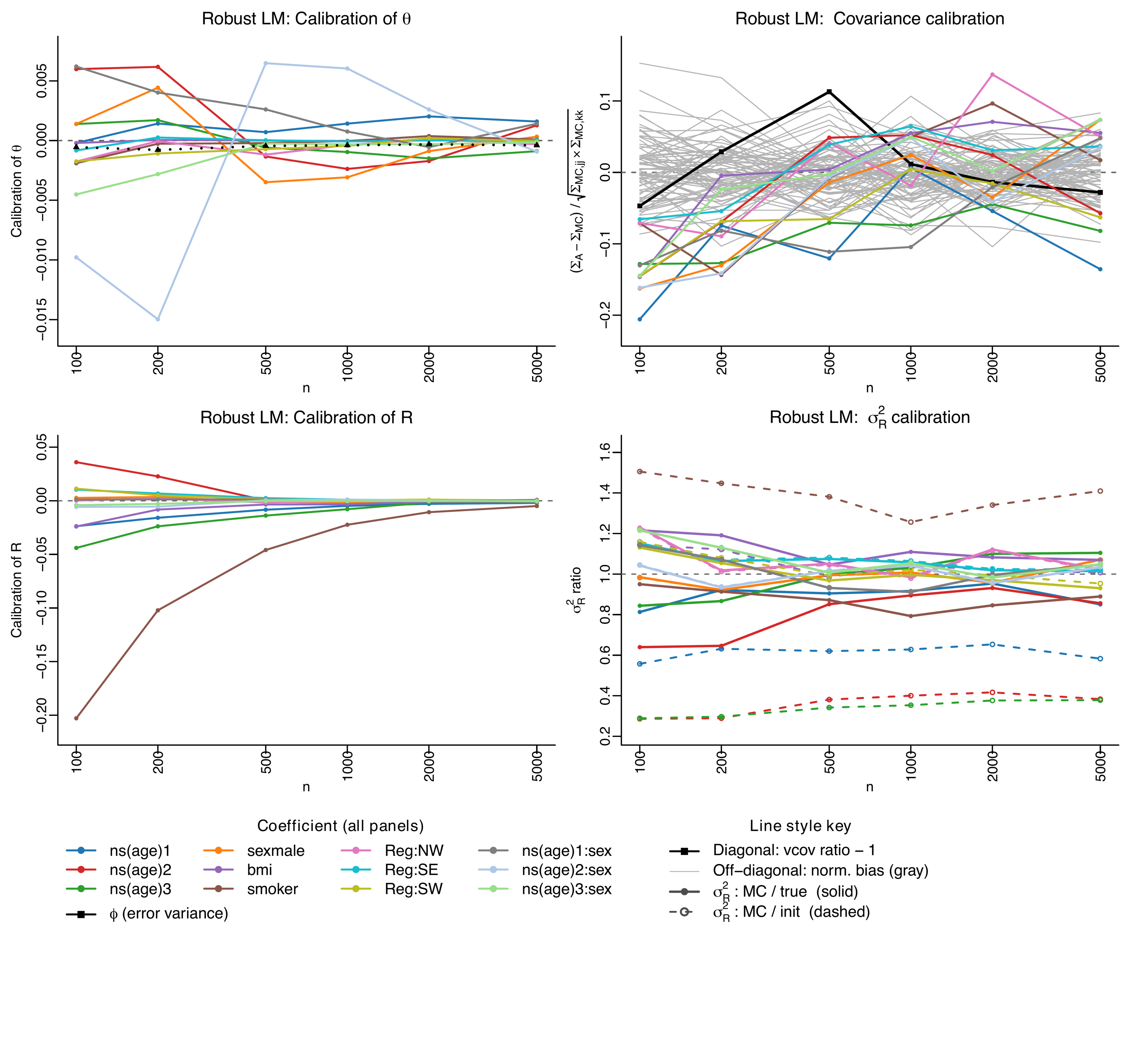

LM robust

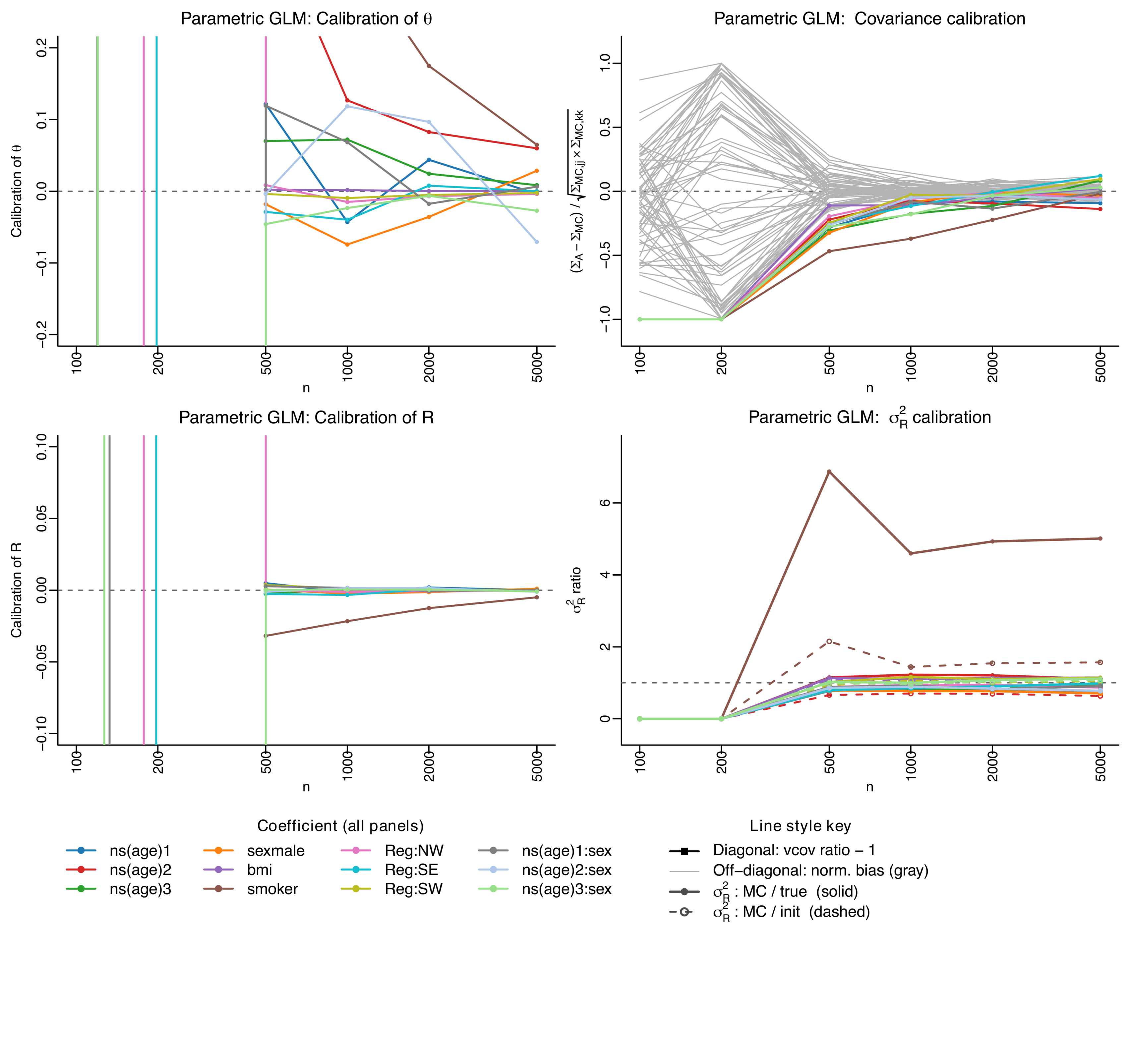

GLM parametric

GLM robust

---

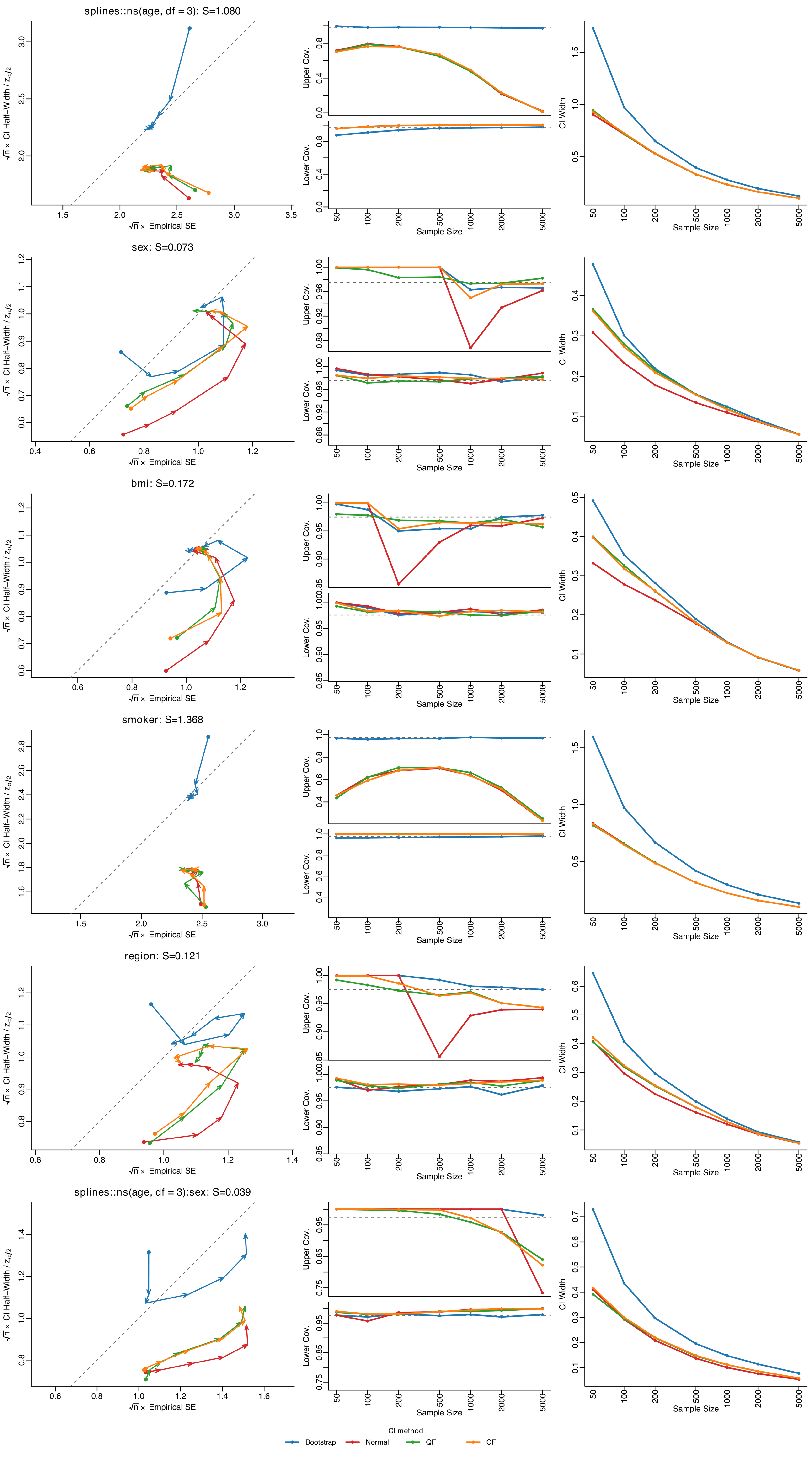

CI method comparison

Coverage (top) and width (bottom) across all four CI methods — Bootstrap, Normal, QF, and Cornish-Fisher — as a function of sample size. The nominal coverage is 95% (dashed reference line). Each panel shows results for one regression term; terms are labelled with their population RESI value.

LM parametric — coefficients

LM parametric — ANOVA

LM robust — coefficients

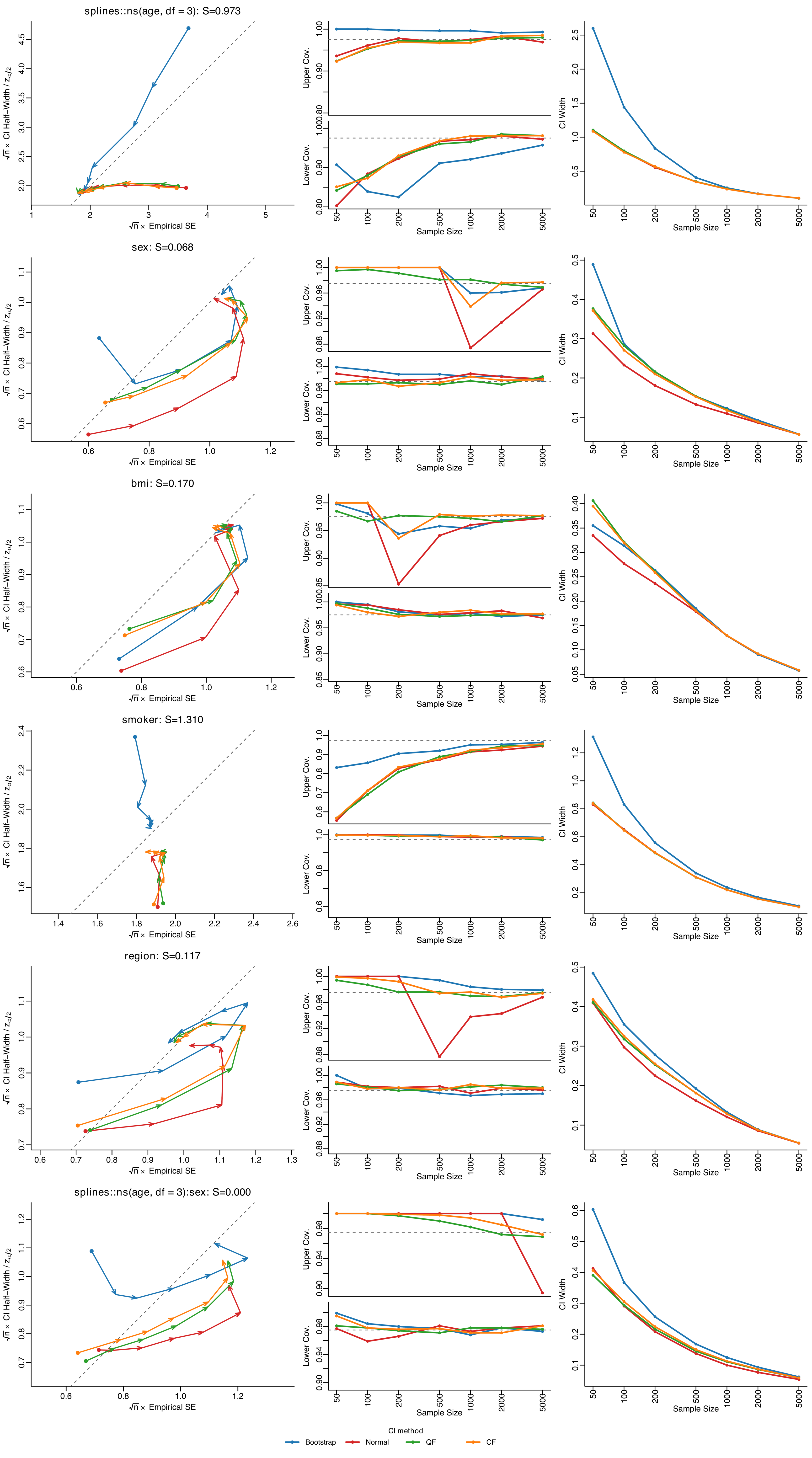

LM robust — ANOVA

GLM parametric — coefficients

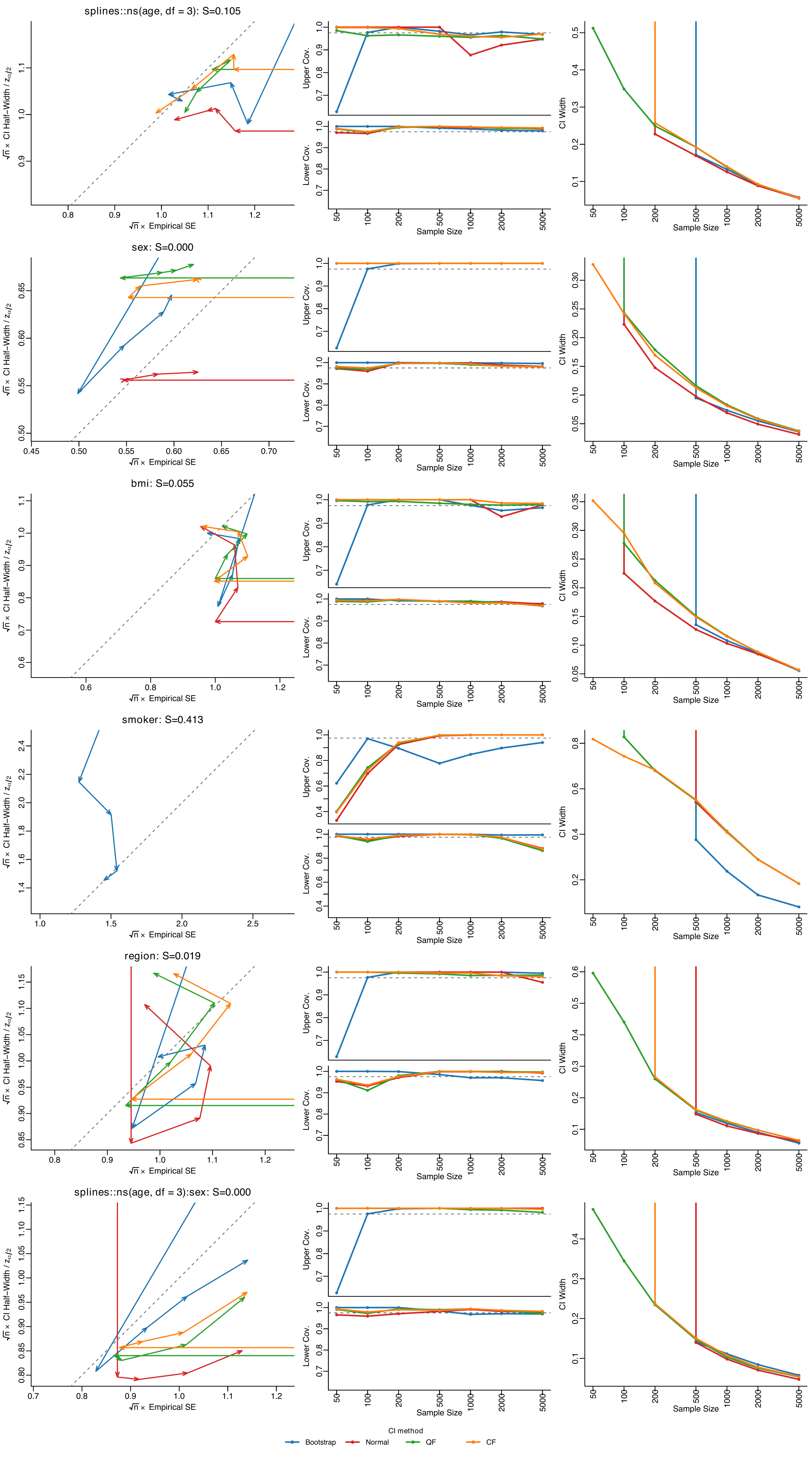

GLM parametric — ANOVA

GLM robust — coefficients

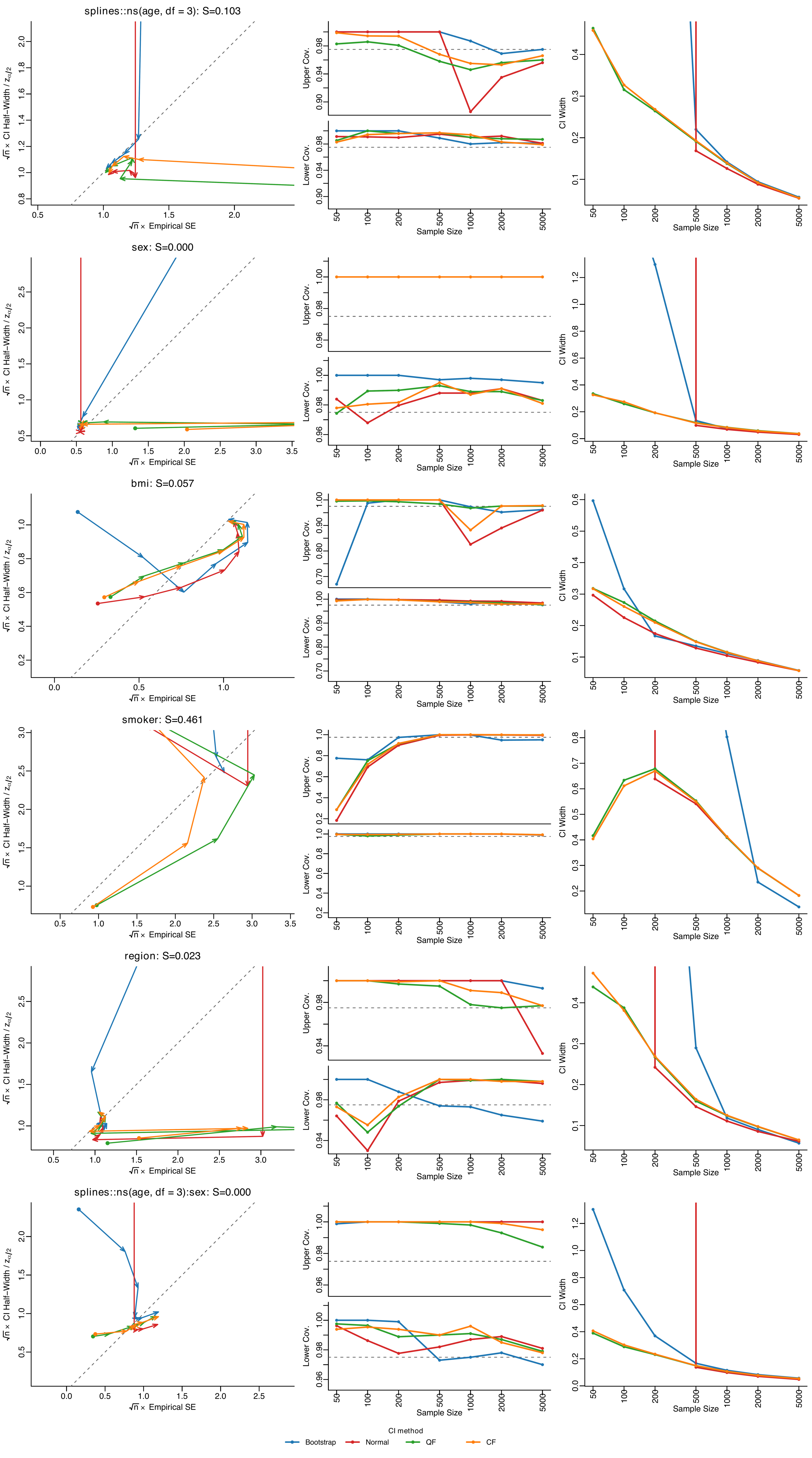

GLM robust — ANOVA

---

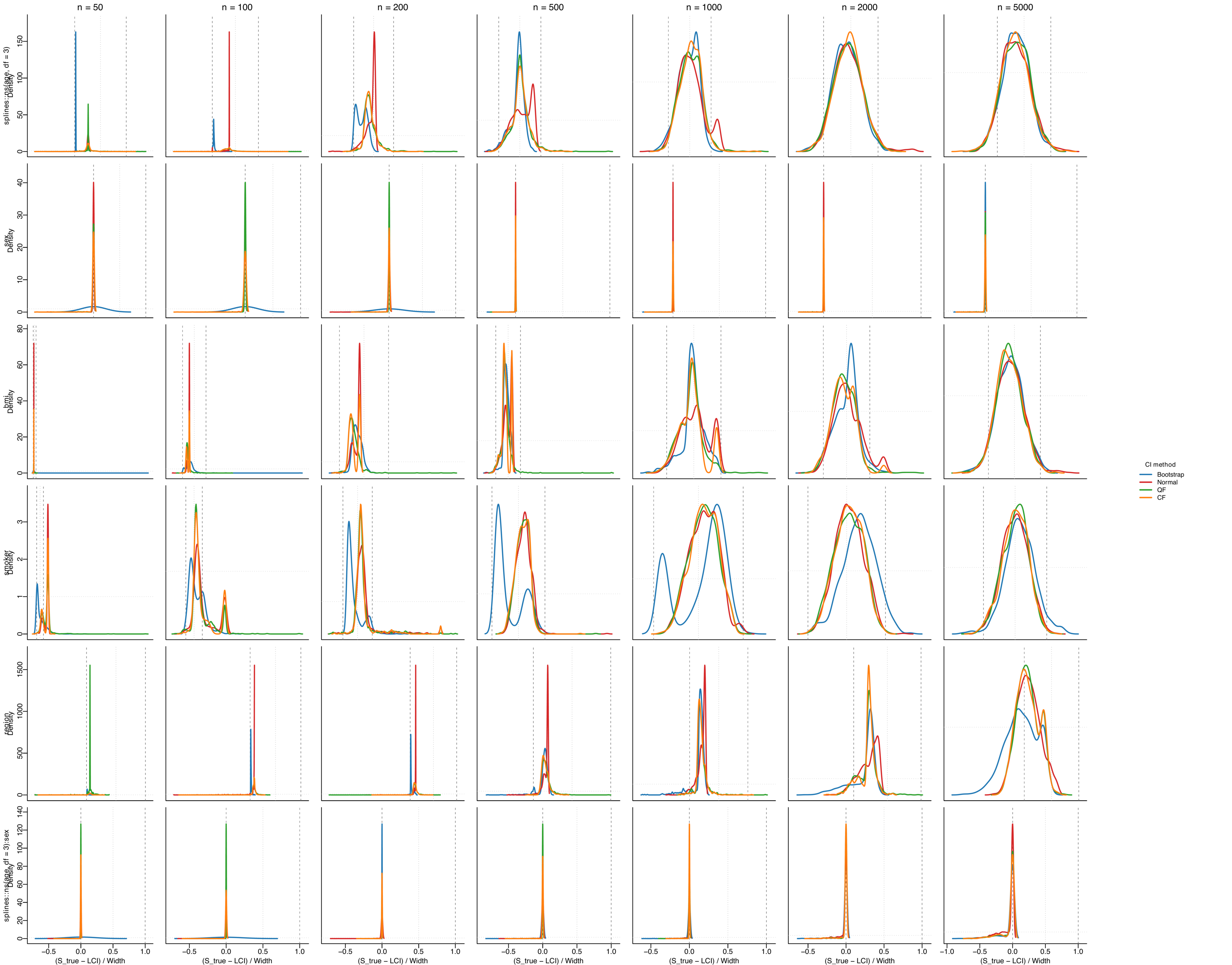

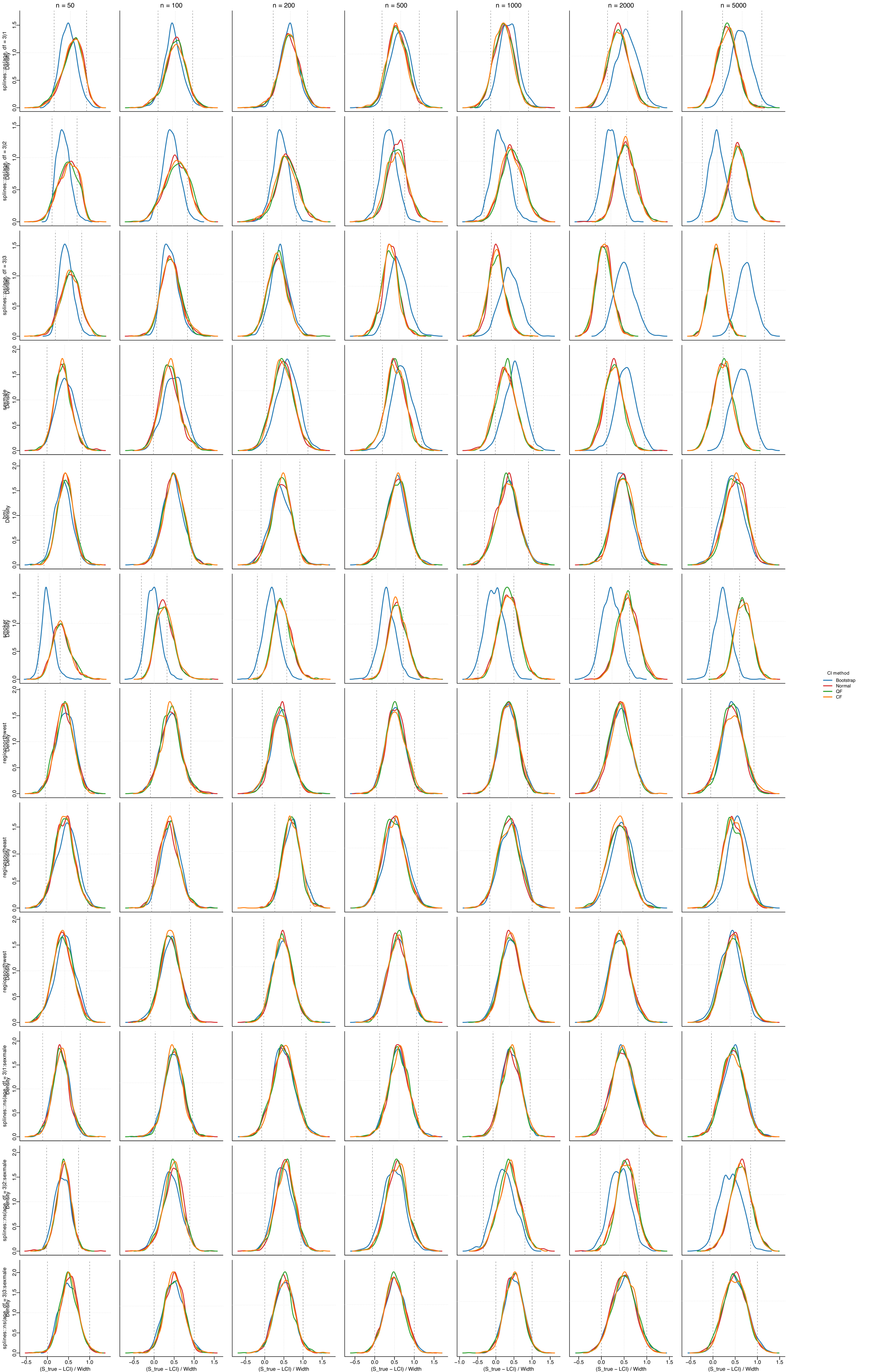

Coverage quantile comparison

These figures show the distribution of per-term coverage across the sample-size grid, displayed as quantile bands. Unlike section 4, which shows mean coverage per term, this view reveals how variable coverage is across terms and highlights any terms where a method systematically under- or over-covers.

LM parametric — coefficients

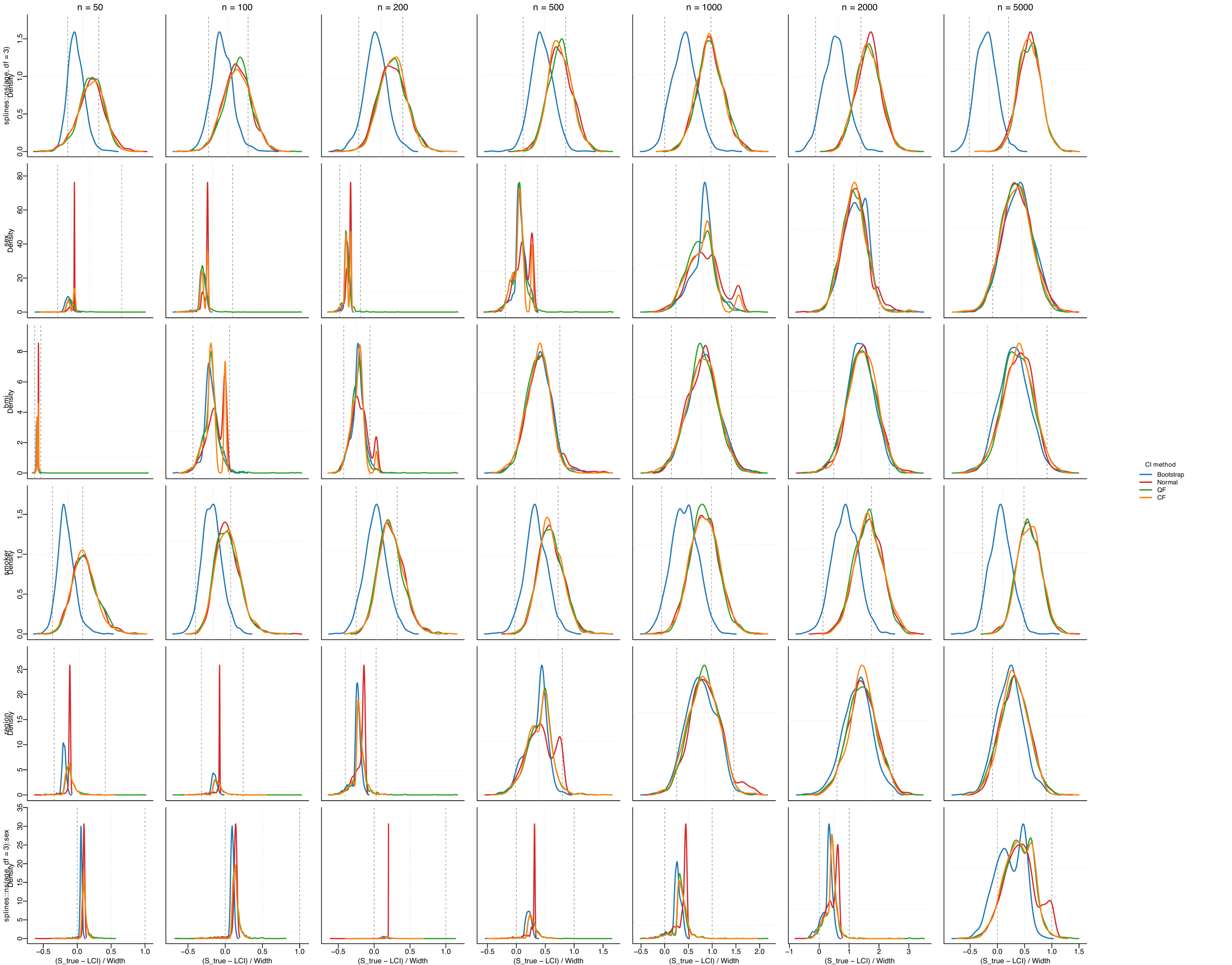

LM parametric — ANOVA

LM robust — coefficients

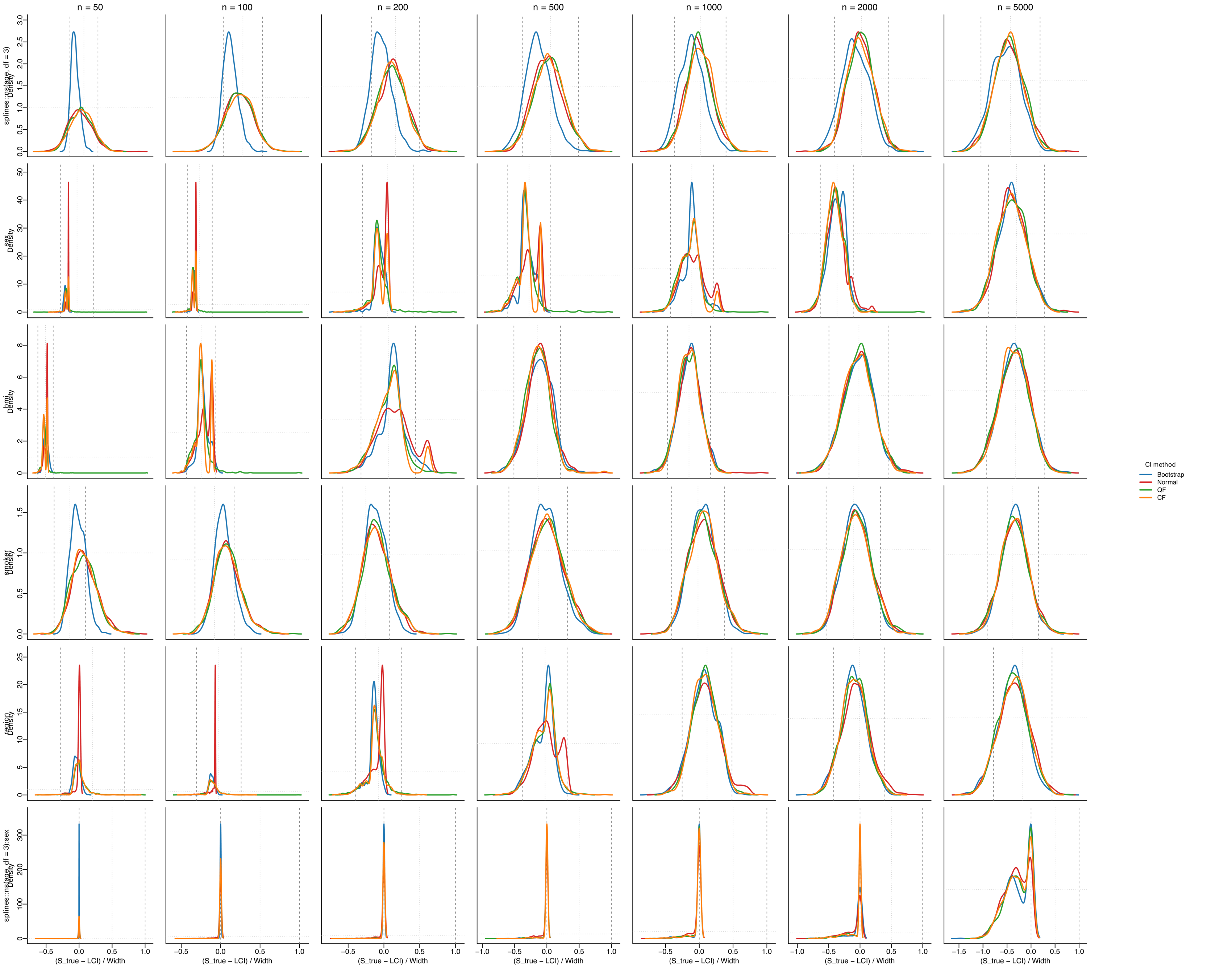

LM robust — ANOVA

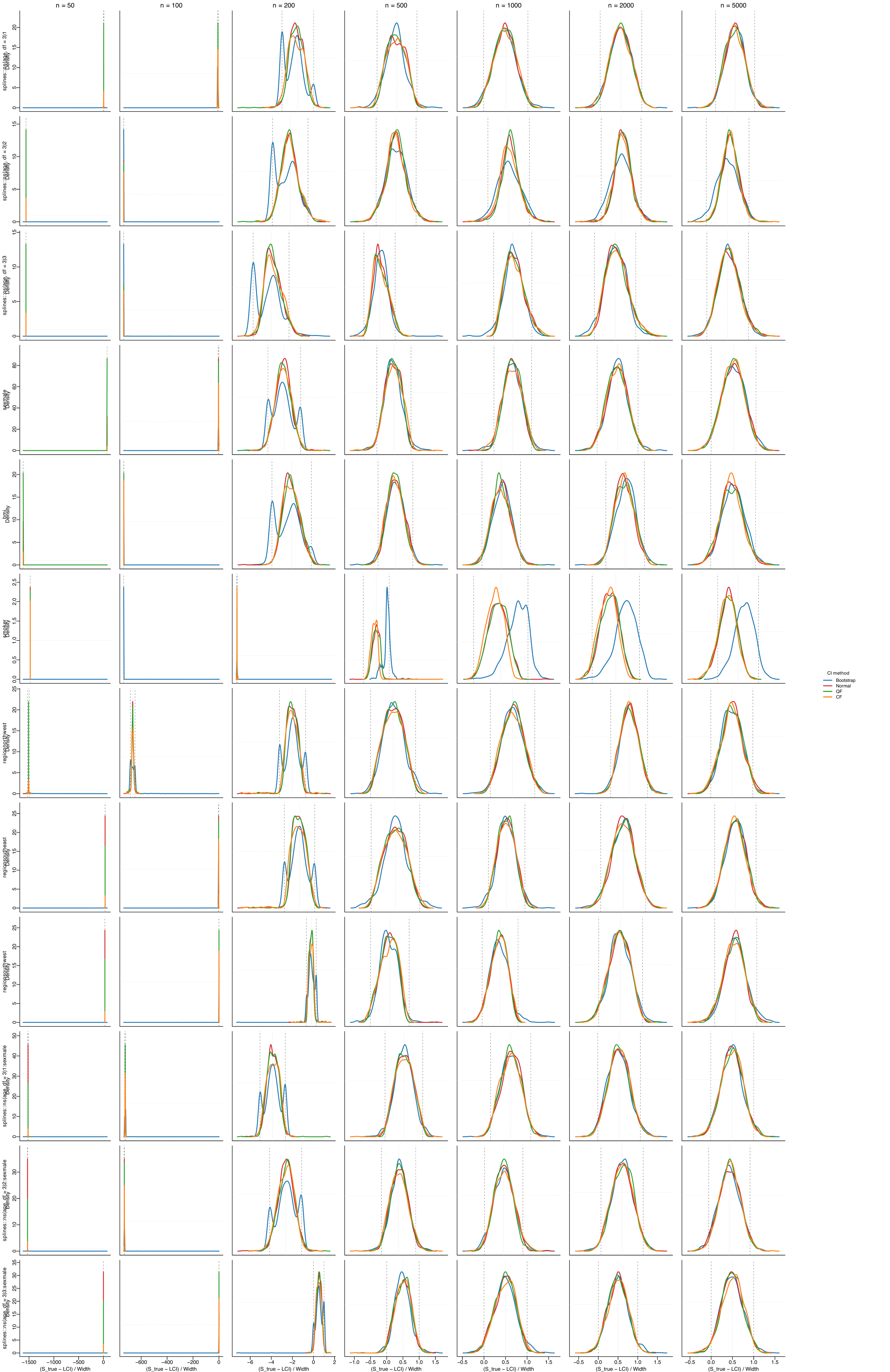

GLM parametric — coefficients

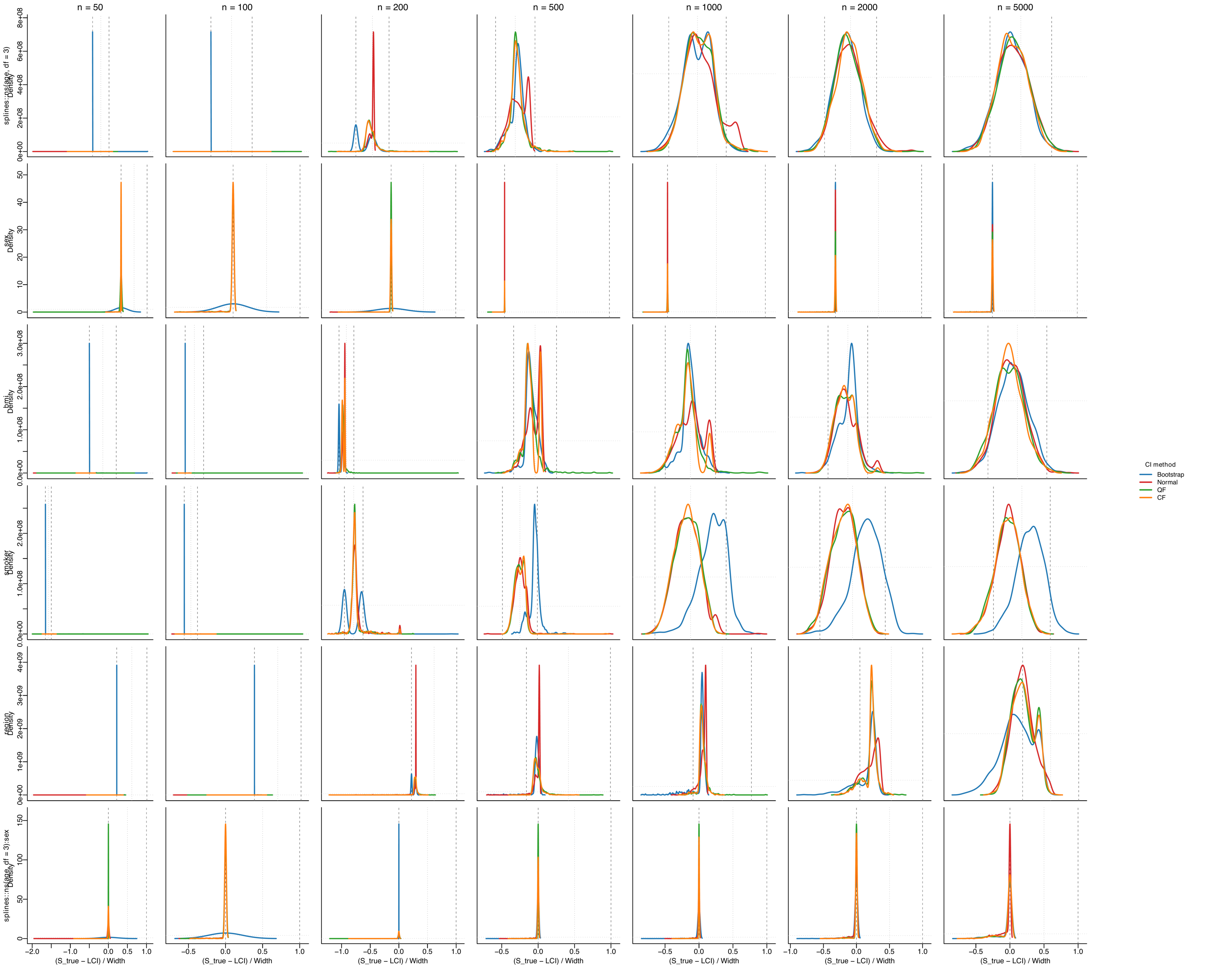

GLM parametric — ANOVA

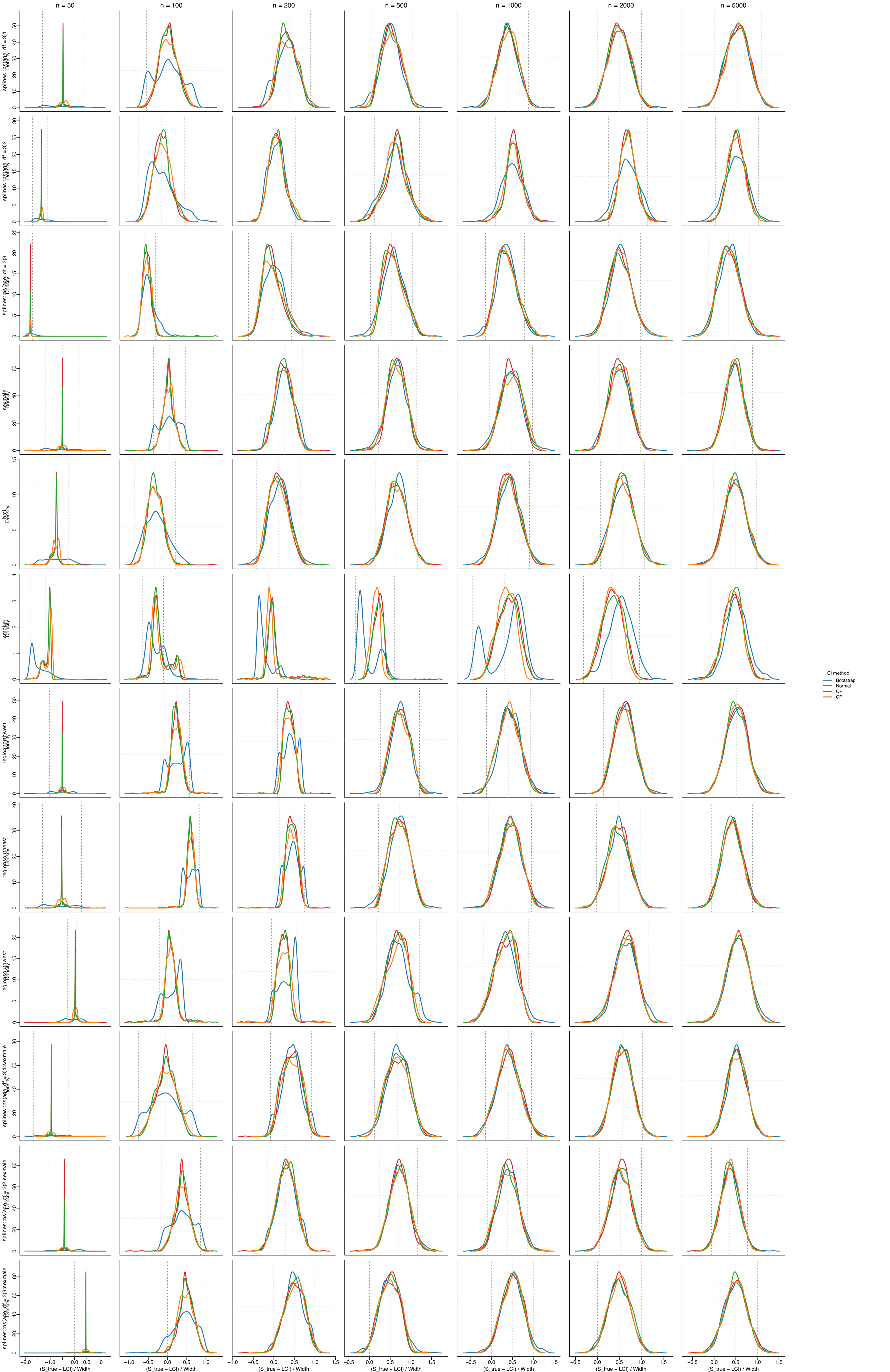

GLM robust — coefficients

GLM robust — ANOVA

---

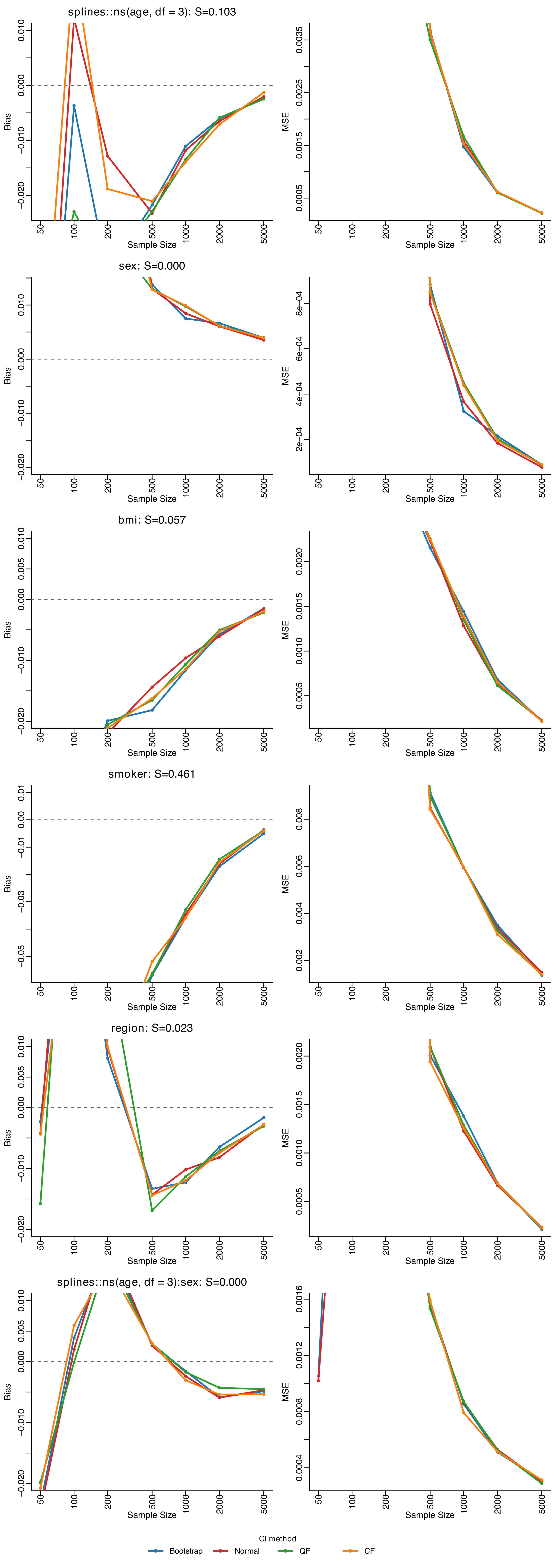

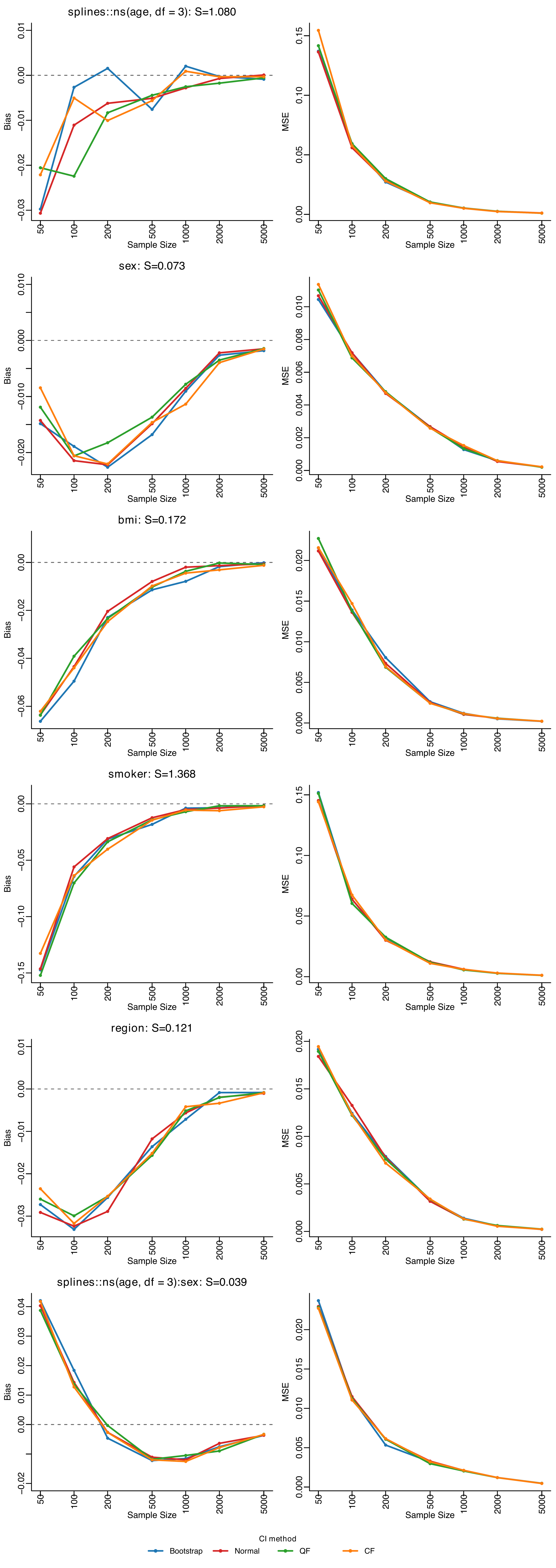

Point estimate bias and MSE

These figures show how the RESI point estimate behaves across CI methods (bias and MSE per term) as a function of sample size. Since all methods use the same plug-in estimator $\hat{S}$, bias and MSE should be identical across methods; any divergence reflects numerical differences in small samples.

LM parametric — coefficients

LM parametric — ANOVA

LM robust — coefficients

LM robust — ANOVA

GLM parametric — coefficients

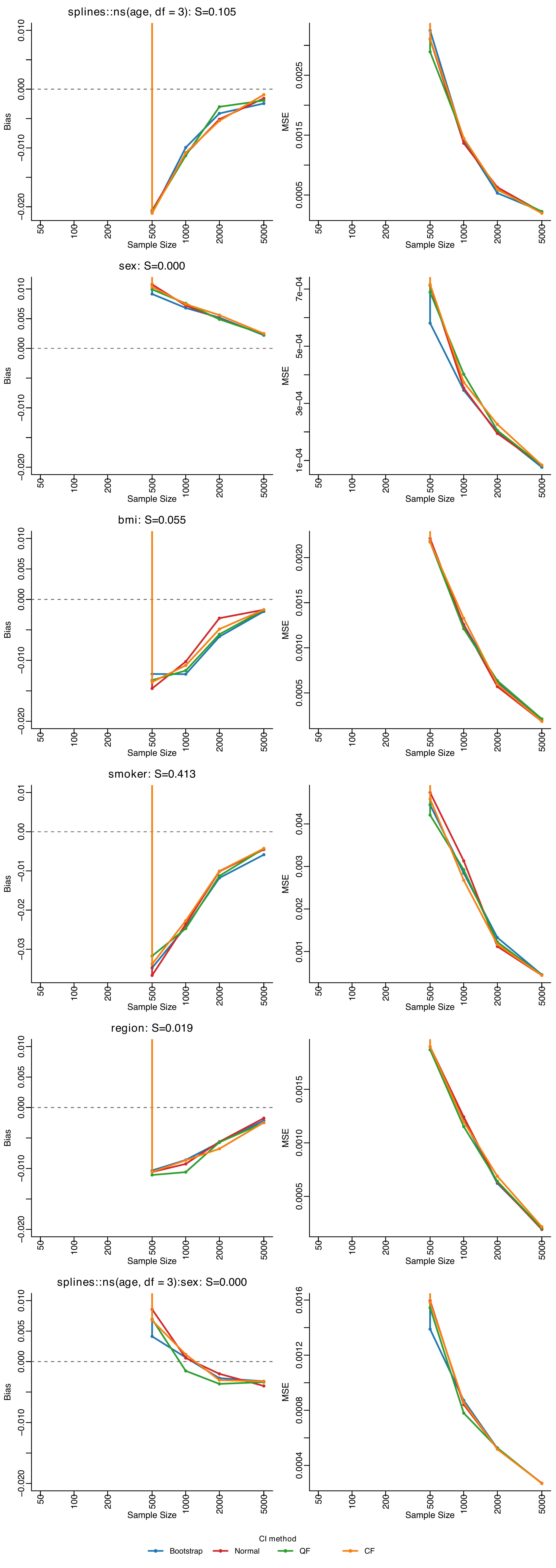

GLM parametric — ANOVA

GLM robust — coefficients

GLM robust — ANOVA

---

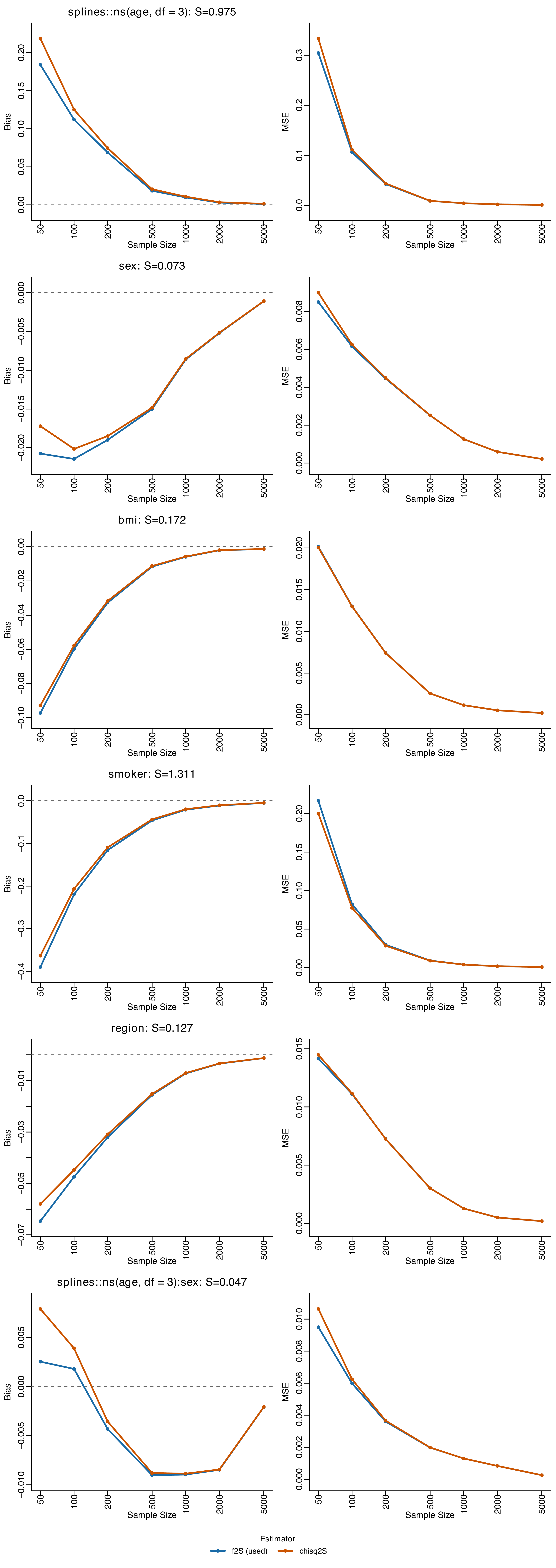

t/F vs z/$\chi^2$ estimator comparison (lm)

The t2S/f2S functions convert test statistics using a t- or F-distribution quantile (accounting for residual degrees of freedom); z2S/chisq2S use the normal or chi-square quantile. These figures show how the two estimator families compare in bias and MSE for the lm model, based on bootstrap simulation replicates.

LM parametric — coefficients

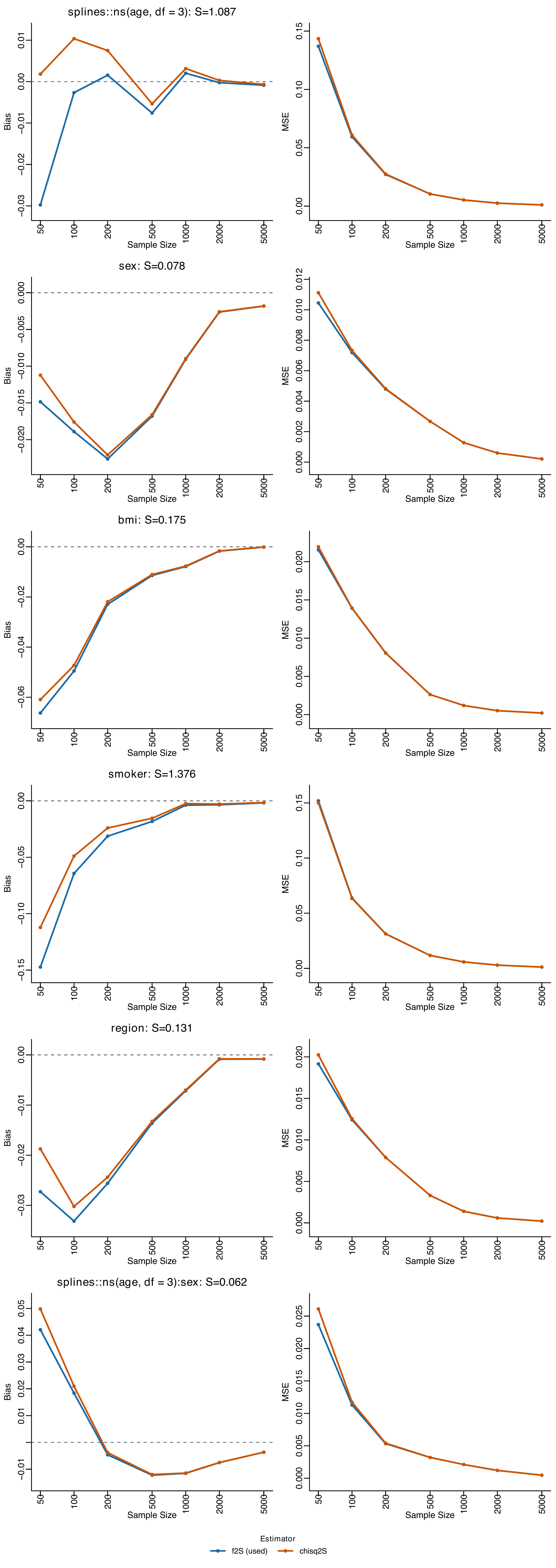

LM parametric — ANOVA

LM robust — coefficients

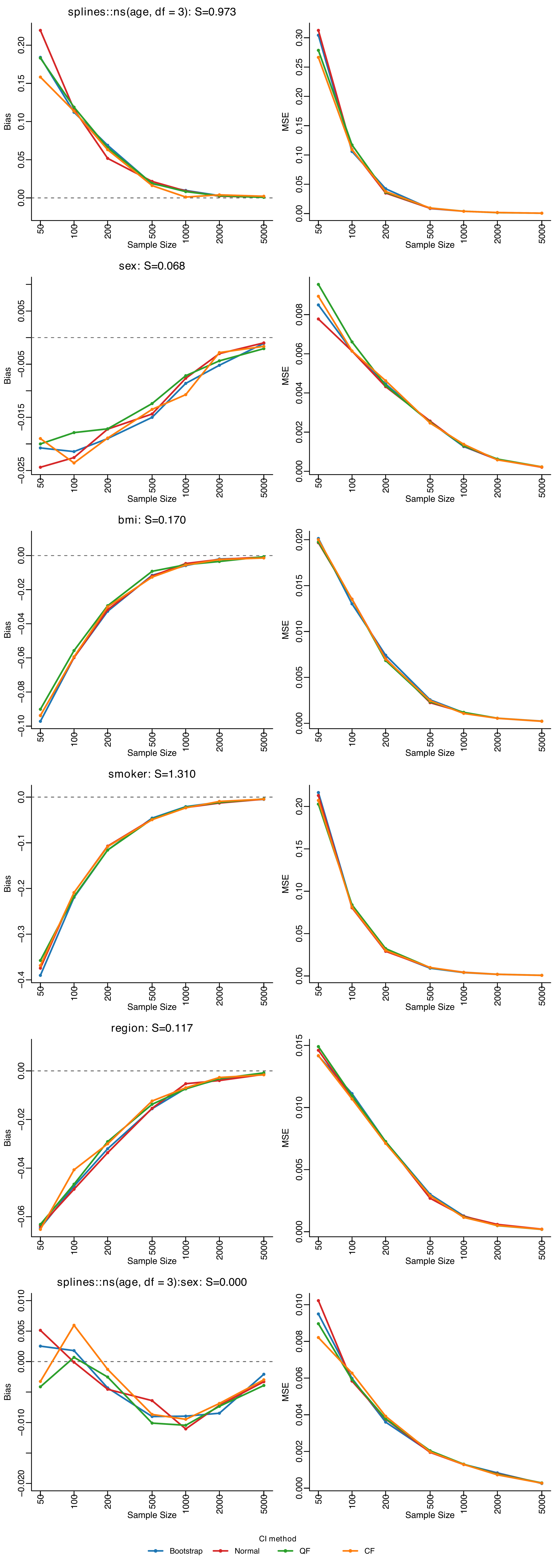

LM robust — ANOVA

---

QF method detail

Per-term coverage and width for the quadratic-form (QF) CI — the package default — across the full sample-size grid.

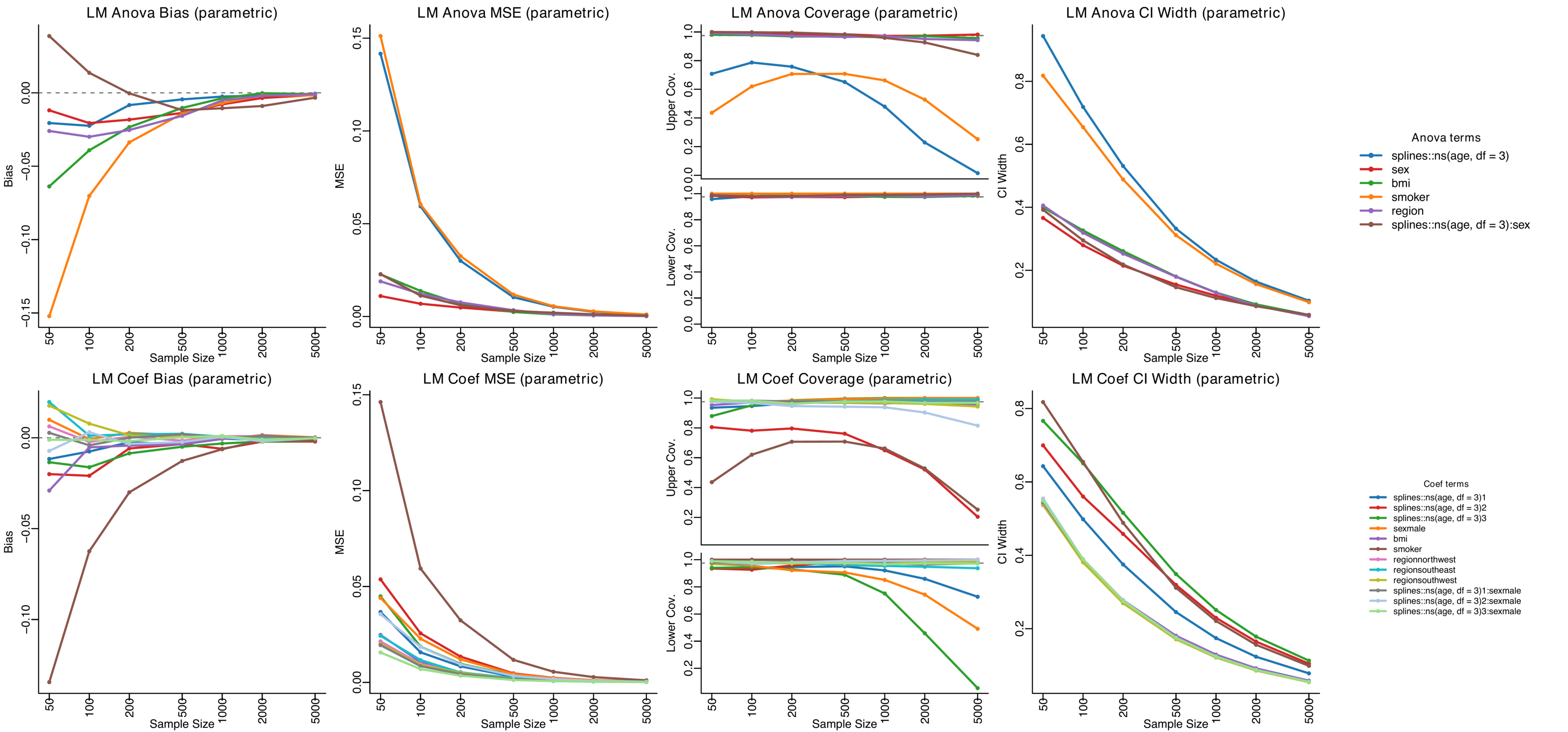

LM parametric

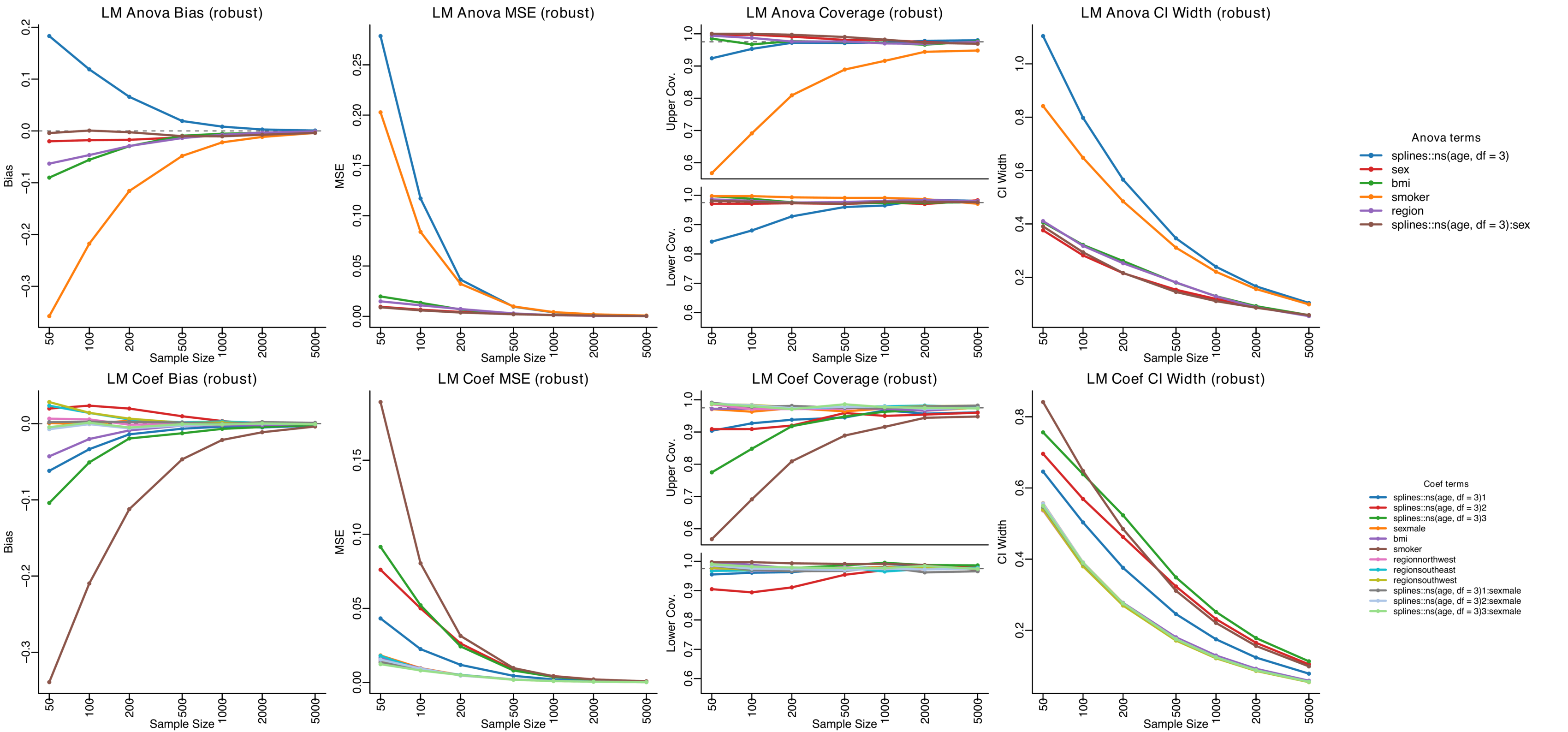

LM robust

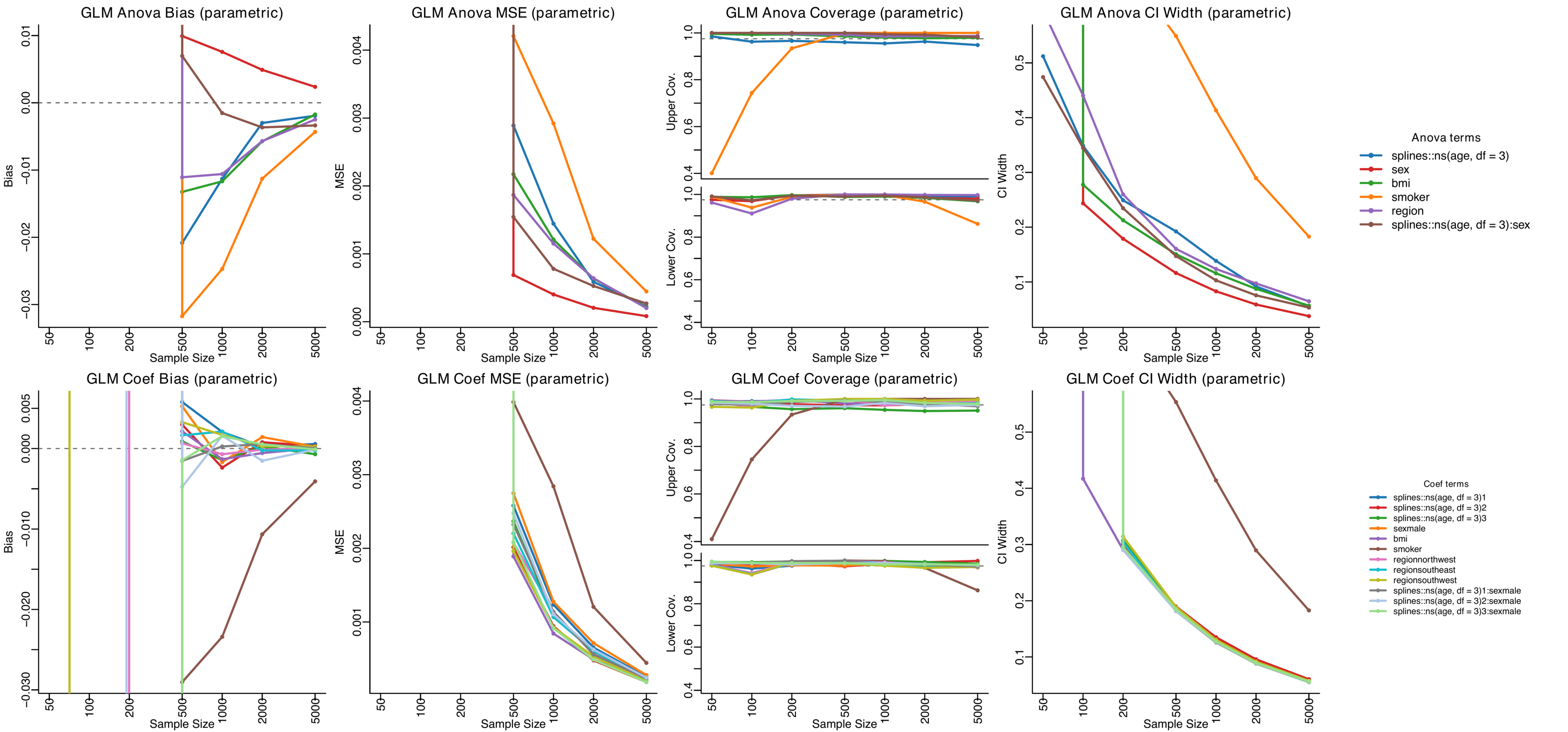

GLM parametric

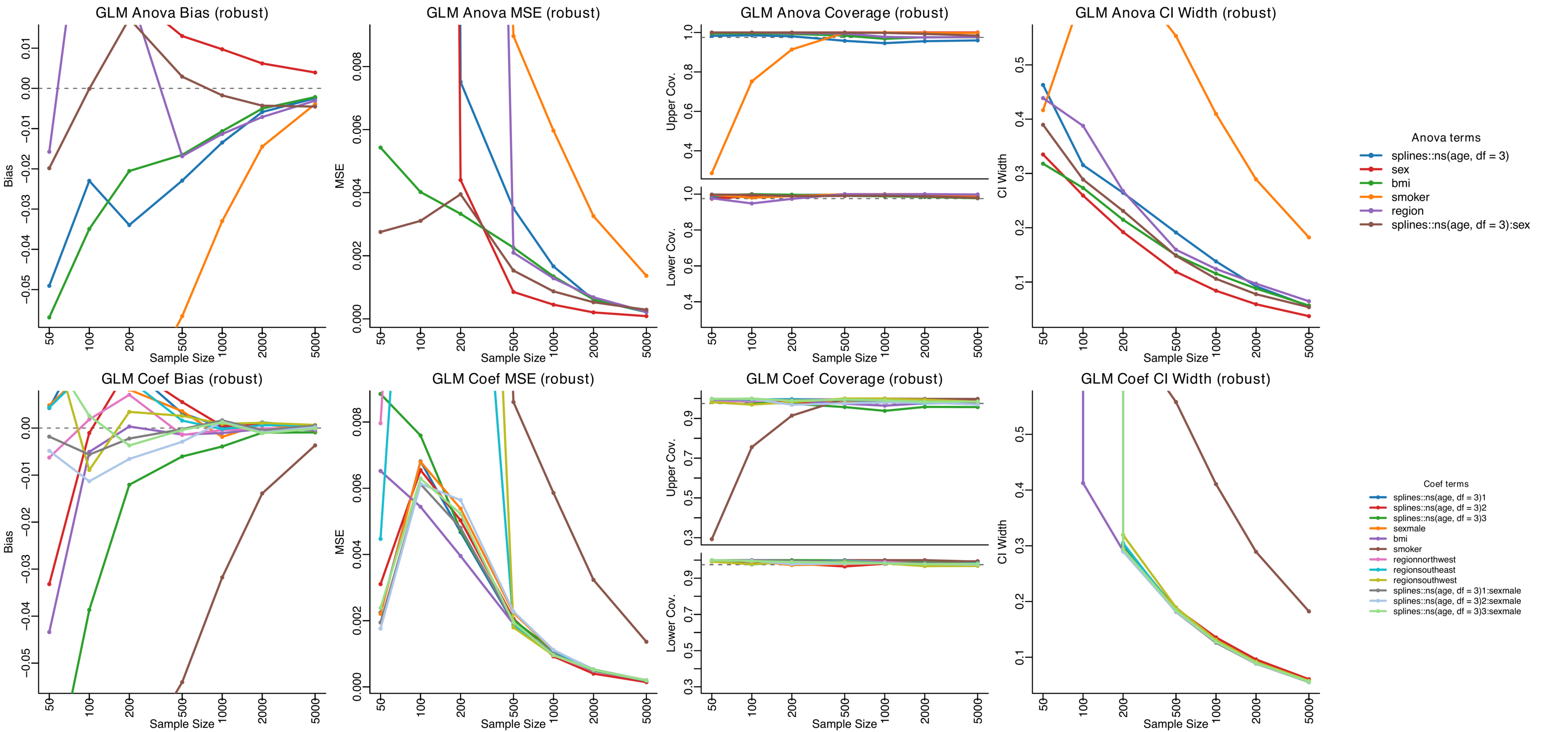

GLM robust

---
